PIR vs PUR: Difference in Cold Storage Applications

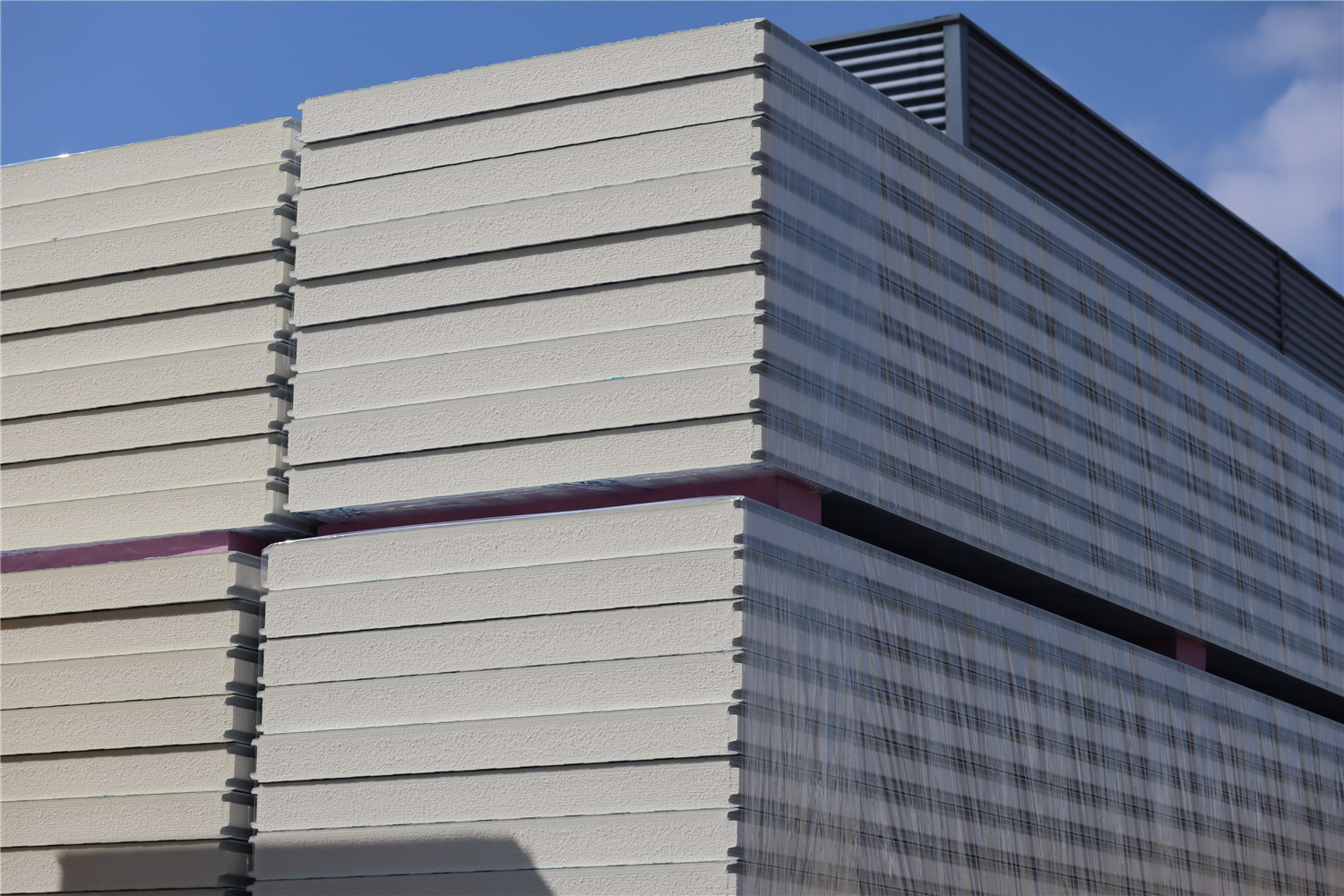

Polyisocyanurate (PIR) and polyurethane (PUR) are two rigid foam insulation materials widely used in sandwich panel construction, particularly in cold storage facilities. While both materials have excellent insulating properties, they exhibit unique properties that affect their performance in specific applications.

-Thermal Properties
PIR generally has a higher thermal resistance compared to PUR, making it a first choice for applications requiring superior insulation properties. PIR's R-value is approximately 6.5 to 7.0 per inch, while PUR is typically 5.0 to 6.0 per inch. The enhanced thermal performance in PIR is critical for refrigerated environments where maintaining low temperatures is critical to preserving perishable goods.

-Fire Resistance

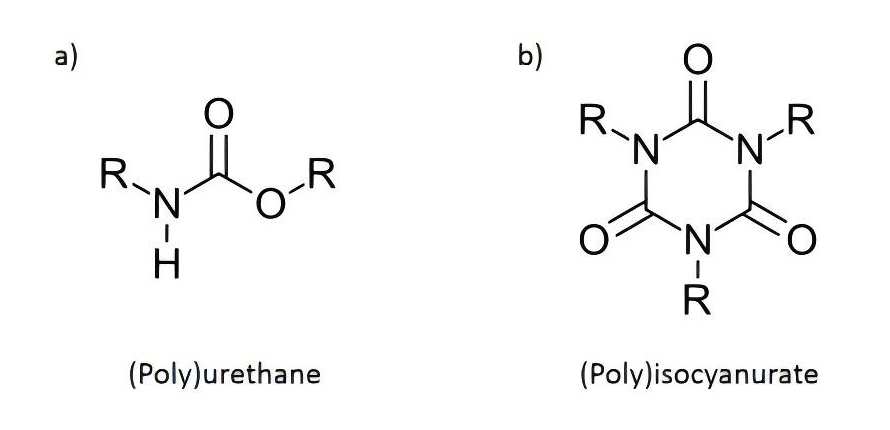

Another significant difference is in fire resistance. Because its chemical structure contains a higher proportion of isocyanates, PIR is inherently more fire-resistant than PUR. This feature enables PIR to achieve better fire protection ratings, making it suitable for applications where fire safety is a concern, such as cold storage facilities that may contain flammable materials.

-Moisture Resistance
Both PIR and PUR exhibit good moisture resistance; however, PIR tends to perform better in high humidity environments. This is particularly important in refrigerated applications where condensation may occur. PIR’s lower water absorption helps maintain its thermal efficiency over the long term, thereby reducing the risk of mold and structural degradation.

-Cost Considerations
Although PIR provides excellent performance, it is generally more expensive than PUR. This cost difference can impact material selection based on budget constraints, especially in large cold storage projects.

In summary, while both PIR and PUR are effective insulation materials for cold storage applications, PIR's superior thermal properties, fire resistance and moisture management make it a more suitable choice for environments where temperature control and safety are critical. However, the decision ultimately depends on specific project requirements and budgetary considerations.
